What MAV stands for

Mountain Assault Vehicle

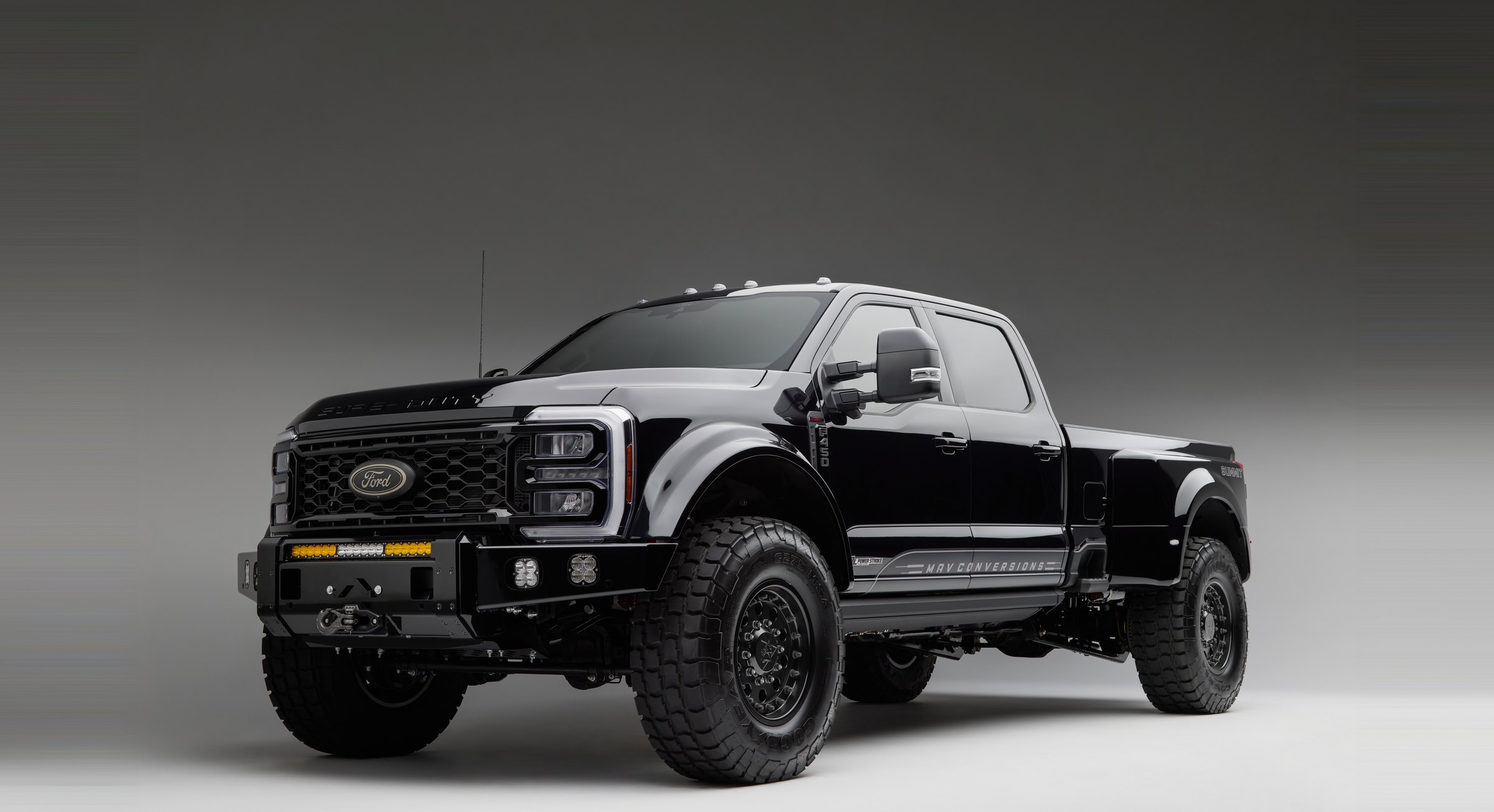

F-450/550 Super Single conversions · Built in San Diego · Made for everywhere else

44"

Maximum tire

33K

Max towing (lbs gooseneck)

6–8^*

Week build

100%

Custom to order

*Build time begins once your truck arrives at our shop. Total lead time from order to delivery also depends on Ford’s nationwide availability of your selected trim and color.

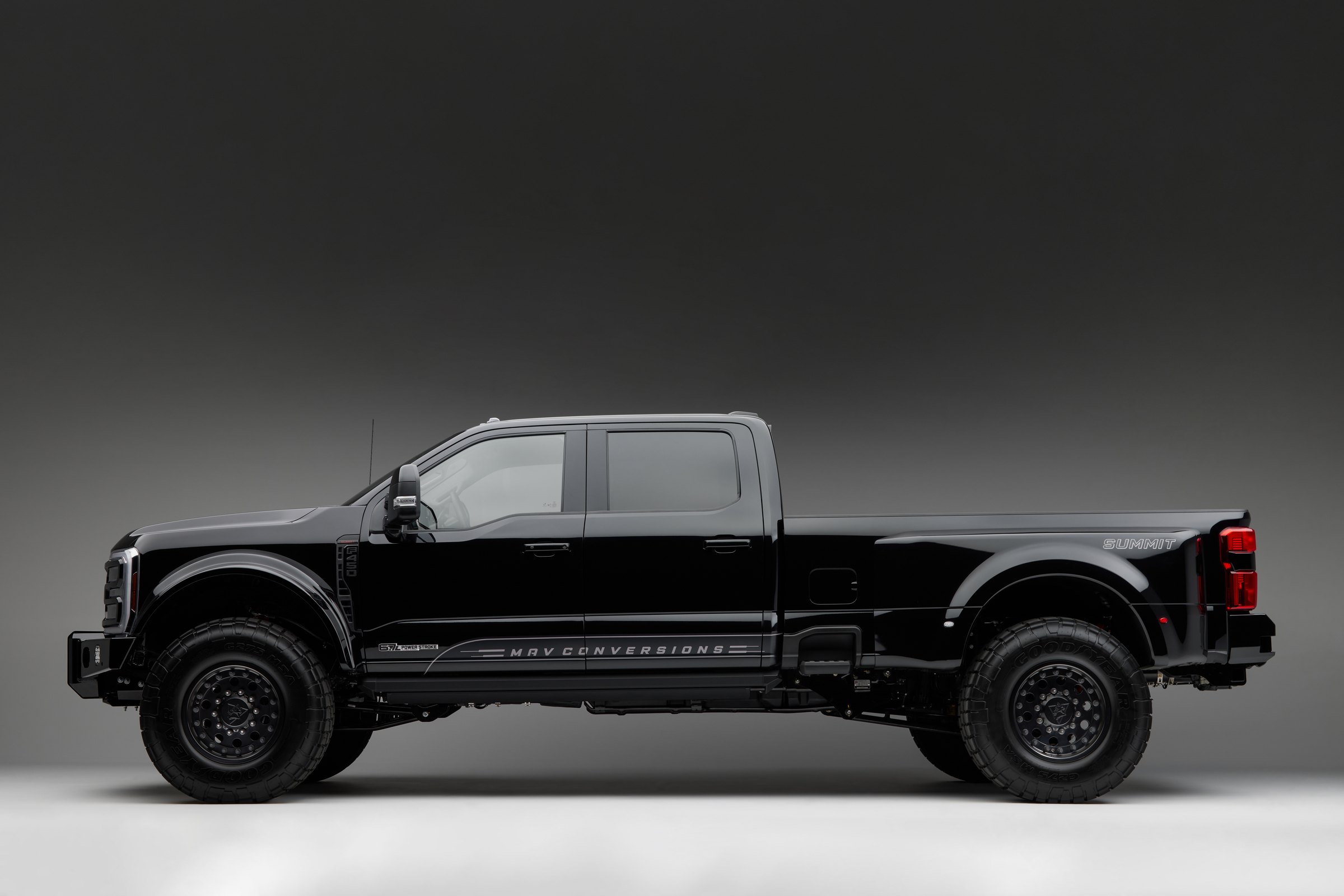

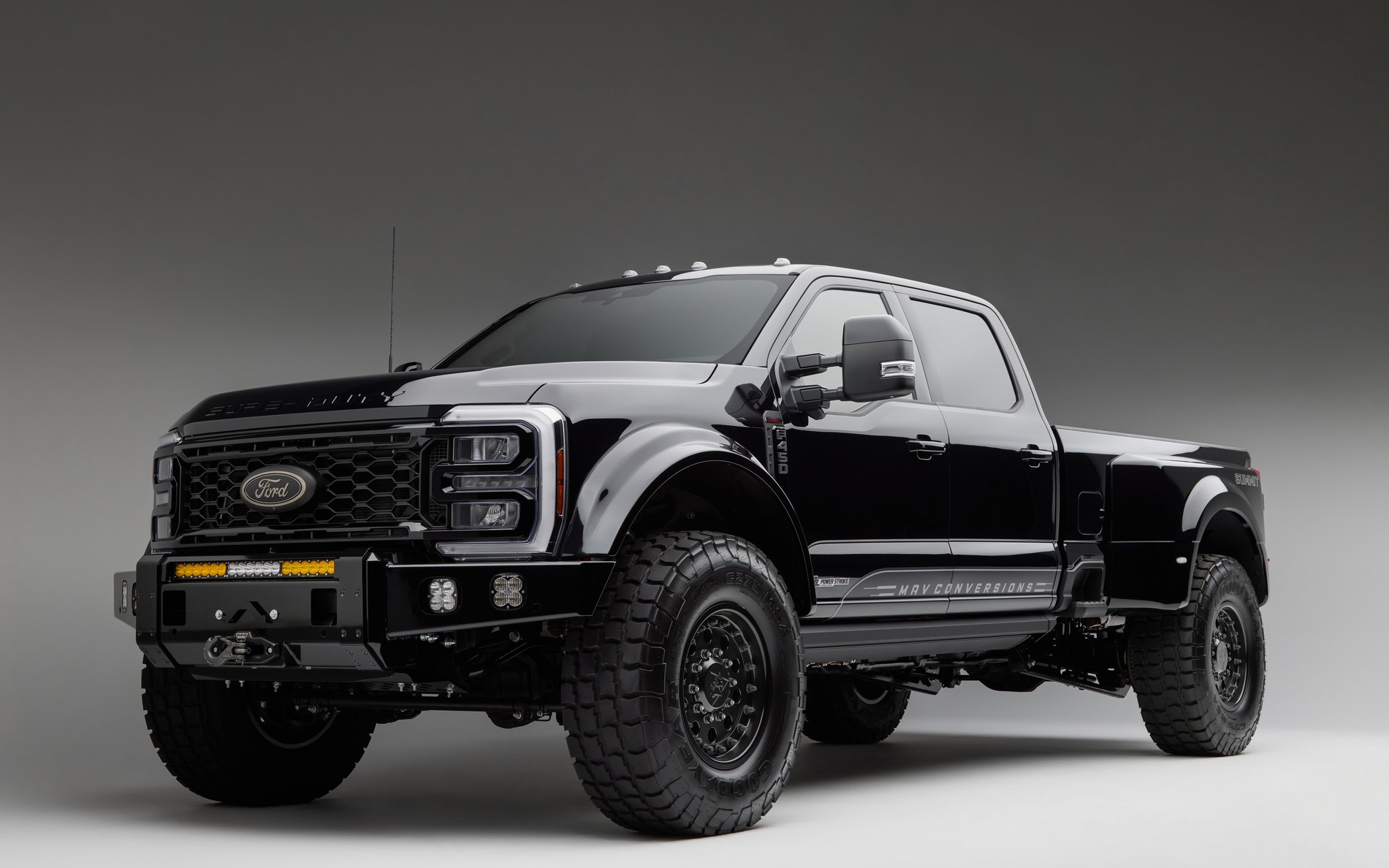

Summit

41" tires

The tow package. Forty-one inch Goodyears, LiquidSpring smart hydraulic suspension front and rear, and a big-brake kit — built to put a boat where the ramp runs out.

33,000 lbMax tow

3,870 lbPayload

10,130 lbCurb weight

14,000 lbGVWR

Max tow is Ford’s gooseneck rating for the chassis. Payload is the practical limit — a heavy trailer’s pin weight reaches it first.

LiquidSpring smart hydraulic suspension, 2" front and rear, plus sway bar
SSBC Beast big-brake kit, front and rear
41" Goodyear G275 on 20×11 two-piece military grade wheels, 8,000 lb rated
HD front bumper with radiator skid, HD rear bumper powder coated
WARN 16.5-Sti synthetic winch
Baja Designs LED lighting package
Wide-body fender flares, painted to body
Spray-in bed liner, AMP XL power running boards
Chrome-delete and blackout trim
TRU-SPEED calibration, 4-wheel alignment
MAV Badge and Appearance Package

Starts at$183,300New 2027 Ford F-450 Lariat chassis, plus sales tax, title & license

Configure

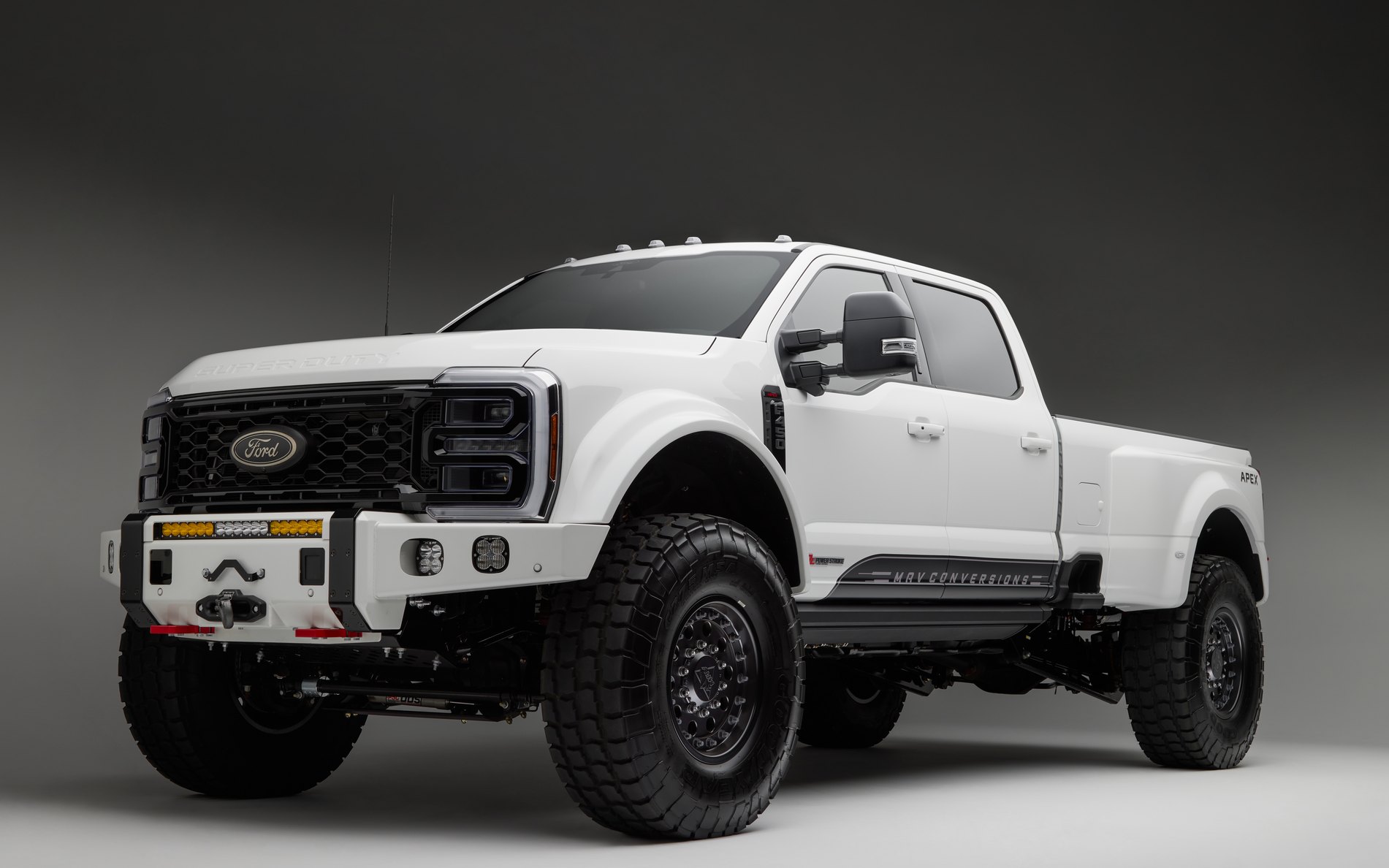

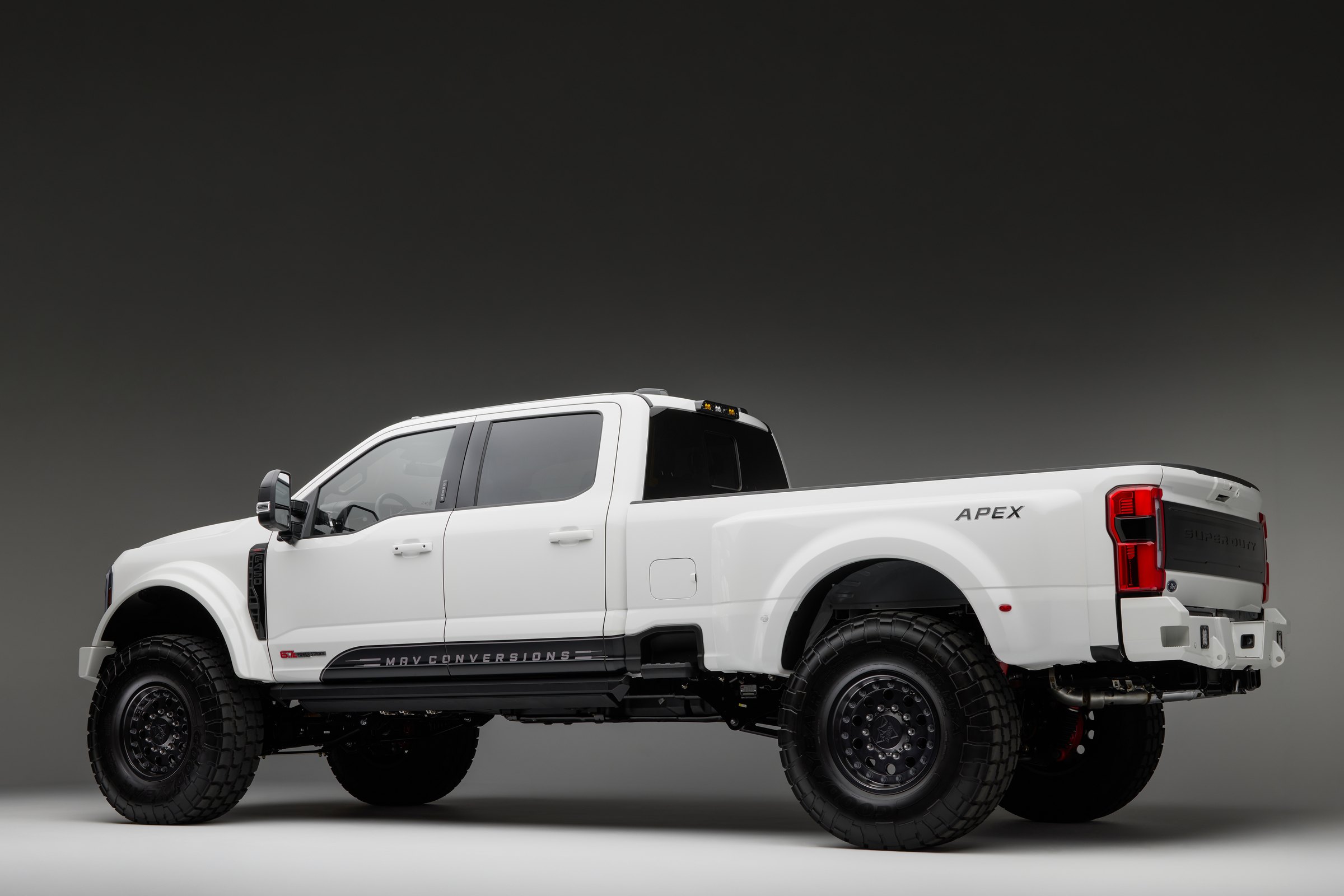

Apex

44" tires

Forty-four inch Goodyears, four-inch LiquidSpring smart hydraulic suspension, big-bore steering and the big-brake kit — everything the Summit is, standing taller.

33,000 lbMax tow

3,830 lbPayload

10,170 lbCurb weight

14,000 lbGVWR

Max tow is Ford’s gooseneck rating for the chassis. Payload is the practical limit — a heavy trailer’s pin weight reaches it first.

LiquidSpring smart hydraulic suspension, 4" front and rear, plus sway bar
PSC Big Bore XD hydro-assist steering
SSBC Beast big-brake kit, front and rear
44" Goodyear G275 on 20×11 two-piece military grade wheels, 8,000 lb rated
HD front bumper with radiator skid, HD rear bumper powder coated
WARN 16.5-Sti synthetic winch
Baja Designs LED lighting package
Wide-body fender flares, painted to body
Spray-in bed liner, AMP XL power running boards
Chrome-delete and blackout trim
TRU-SPEED calibration, 4-wheel alignment
MAV Badge and Appearance Package

Starts at$199,300New 2027 Ford F-450 Lariat chassis, plus sales tax, title & license

Configure

SSBC Beast big-brake kit

Maximum safety and stopping power

The Beast kit goes on every truck we build, front and rear. It is not an option and it is not an upgrade, because a truck this size, on tires this tall, with a trailer behind it, is only ever as safe as the thing that slows it down. That is not where we let a customer economize.

So we had it measured rather than argue about it. An independent test facility ran a finished Apex through the federal brake procedure at the truck’s full rated weight — not a curb-weight number — and every stop came in comfortably inside the federal limit, with room to spare. Those runs were never the truck’s best, either: the lab was following a procedure, not trying to stop short, so nobody put the pedal to the floor. When the engineer did, it stopped shorter still.

IndependentThird-party test facility

Full GVWRLoaded to its rated weight

Inside the limitEvery stop, federal procedure

Front SSBC Beast caliper behind a 44-inch Goodyear, with the red LiquidSpring strut alongside

Rear axle of a MAV build, both red calipers and both LiquidSpring struts visible

Cabin noise

As quiet as a half-ton

A military tread on a 41-inch tire is supposed to roar at you the whole way home. So we put a sound meter on the dash and drove. At seventy on the highway a Summit read about 72 dB inside the cab. A 2023 Toyota Tundra SR5 on ordinary 29-inch tires, same meter, same speed, came in within a decibel of it.

That is not luck. The Goodyear G275 and the pressures we set it at were chosen for exactly this — a truck that looks like it should shout at you, and instead lets you hold a conversation at highway speed.

Filmed in each cab with the same handheld meter at the same indicated speed, on separate roads. A measurement, not a laboratory test — road surface moves a reading as much as a tire does.

MAV Summit · 41"

Tundra SR5 · 29"

The process

From order to your driveway

Six to eight weeks once your truck reaches our facility. Total time depends on Ford’s nationwide availability of your trim and color.

Spec it

We size the build to what you tow and where you take it. You get a written quote the same week.

Reserve

A 30% deposit signs the agreement and starts the hunt for your truck, through our 11+ commercial Ford dealer partners. The deposit is 30% of the conversion only — you put nothing down on the truck until we have found it.

Build

You pay for the truck when it arrives at our shop, and that is when the build starts. Suspension, steering, brakes, rolling stock, bumpers, paint — you get photos as it comes together.

Delivery

Final quality check, then the rest of what you owe — including sales tax — is due as the truck goes out. Picked up in Escondido or delivered to your door, anywhere in the country.

About MAV

Built in San Diego. Built to last.

MAV Conversions builds its own trucks, in our own 16,000 sq ft facility in San Diego County. We are not a broker, and we do not farm the work out. We source the chassis, do the fabrication, hand-finish every truck and road test it ourselves, so no two are the same and the build never leaves our floor. Start to finish, you are dealing with the people who build your truck.

16,000sq ft facility

6–8week build

US & Canadadelivery

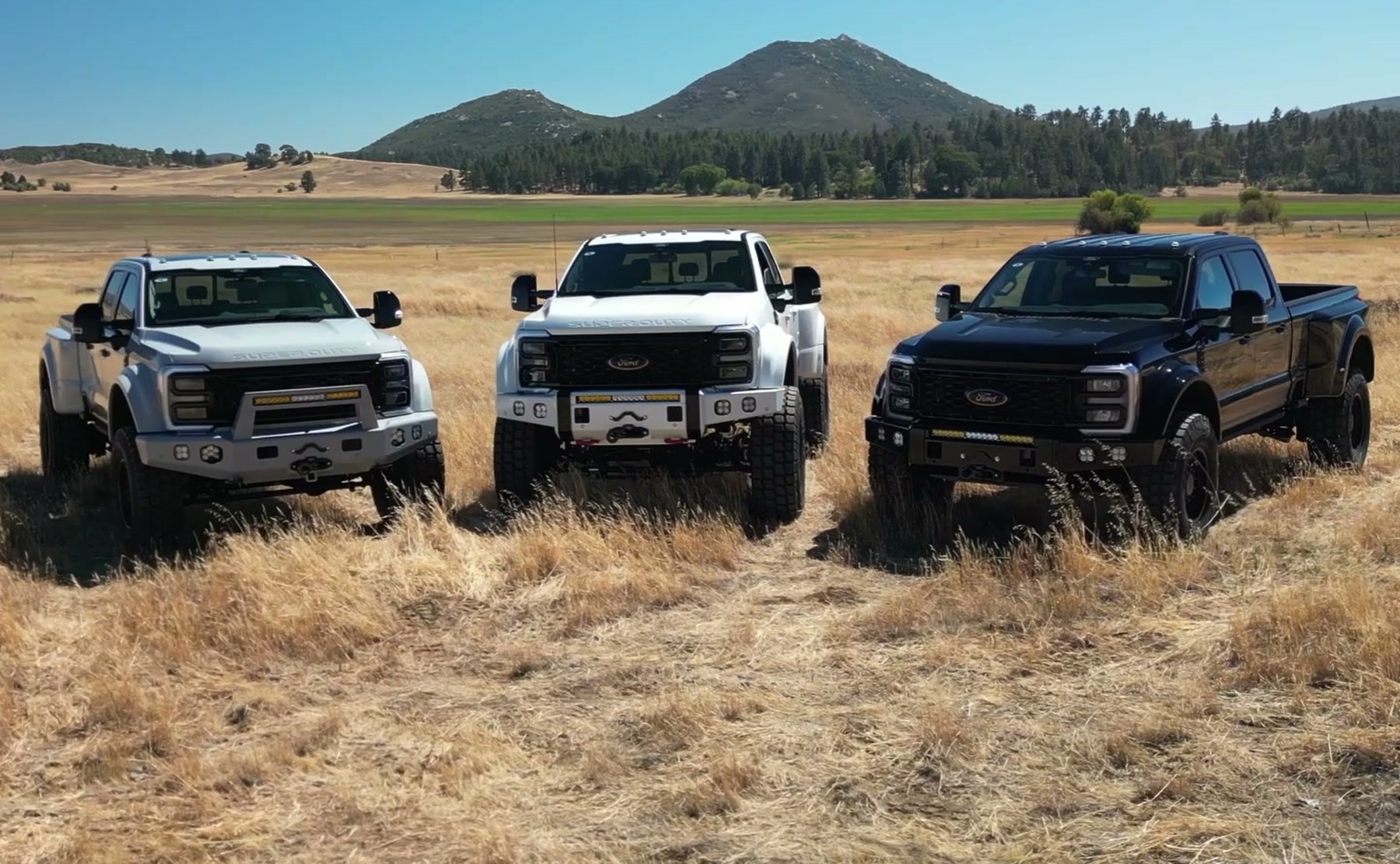

Three finished MAV F-450 builds parked in a field

Tell us how you’ll use it. We’ll spec it for you.

Every MAV starts with a conversation. Call and talk it through, or leave the outline here and we’ll call you.

Name Phone

Email Where will the truck be registered? What will you tow, and where do you take it?

Call (760) 691-2588
